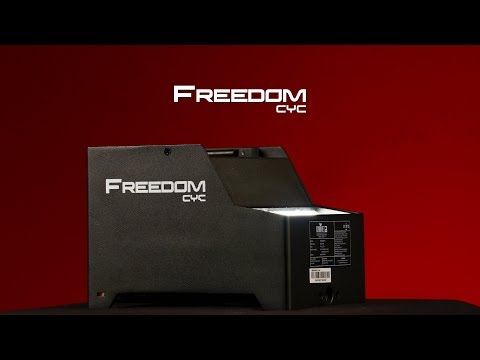

Freedom Cyc is a 100% TRUE wireless, battery-operated cyclorama light that surfaces with a wide, even wash never before seen in a fixture of its size. Its unique lens design perfectly mixes the RGB+WW color spectrums. Freedom Cyc can be used on battery power or connected to electrical mains for even greater output! Being part of the Freedom family of 100% wireless products, Freedom Cyc can be controlled remotely and works in Master/Slave with other Freedom fixtures. The unit has multiple wireless control options via FlareCON, IRC-6, or DMX using a D-Fi transmitter. Quick access to the built-in color temperature presets eliminate programming time, and high-frequency LED dimming makes Freedom Cyc flicker-free and perfect for video use. Extend the battery’s lifespan with built-in discharge protection.

Highlights

• 100% TRUE wireless, battery-operated cyc light blankets the wall with uniform colors

• Unique lens design perfectly mixes the RGB + WW color spectrums

• Can be used on battery or connected to electrical mains for even greater output

• Multiple wireless control options via FlareCON, IRC-6 or DMX using a D-Fi transmitter

• Quick access to the built-in color temperature presets eliminate programming time

• Flicker-free on video due to the high-frequency LED dimming

• Extend the battery’s lifespan with built-in discharge protection

• Works in master/slave with other Freedom fixtures

Specifications

• DMX Channels: 4, 6 or 10

• DMX Connectors: 3-pin XLR

• Max Unobstructed Distance: 650 ft (183 m)

• Light Source: 16 LEDs (4 red, 4 green, 4 blue, 4 warm white) 48 W total (3.5 A), 50,000 hours life expectancy

• Strobe Rate: 0 to 22 Hz

• PWM Frequency: 1.2 KHz

• Beam Angle: 52°

• Field Angle: 95°

• Maximum Run Time: (all on): up to 8 hours
  (single color): up to 20 hours

• Recharge Time: 5 hours

• Operating Frequency: 2.412 to 2.484 GHz

• Illuminance: 418 lux @ 2 m

• Lumens: 1,824

• Power Linking: 15 units @ 120 V; 29 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 64 W, 0.5 A @ 120 V, 60 Hz
  61 W, 0.2 A @ 230 V, 50 Hz

• Weight: 7.2 lb (3.3 kg)

• Size: 7.5 x 5.8 x 5.4 in (191.2 x 148.2 x 138 mm)

• Approvals: CE, FCC

• Color Temperature Range: 2800 to 6500 K

• Bracket Mounting Hole: M12

• Optional Controllers: FlareCON Air

WHAT'S INCLUDED

• Freedom Cyc

• Power cord

• Quick Reference Guide

• IRC-6
